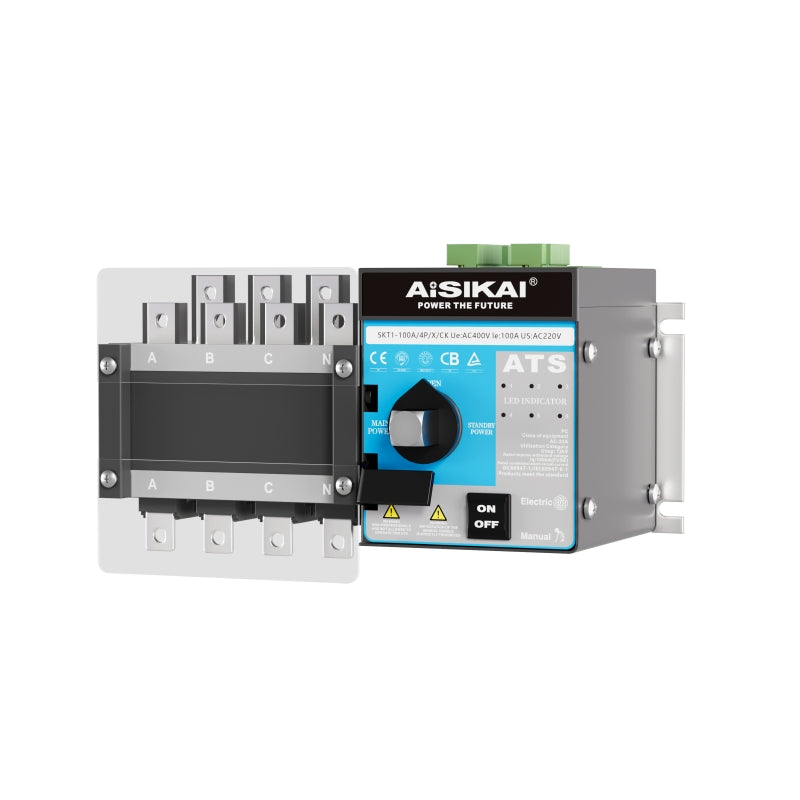

SKT1-100A
100 AMP ATS
The MECCA SKT1-100A is a 100-amp automatic transfer switch designed to transfer electrical power between the utility supply and a compatible generator during an outage. It is suitable for low-voltage residential and light commercial backup-power systems operating at 50 or 60 Hz
Key Features
-
100A rated currentfor compatible low-voltage backup-power installations.
-
Automatic source transferswitches the connected load between normal/utility and standby/generator supplies.
-
PC-class SKT1 designis intended specifically for power-source transfer duties.
-
AC-33A utilization categorysupports frequent transfer operation within the SKT1 family.
-
Manual and electrical operationprovide additional control options for commissioning and service.
-
I-0-II switching architectureprovides normal-source, off and standby-source positions within the SKT1 platform.
Specifications
- Model: SKT1-100A
- Product Type: Automatic transfer switch (ATS)
- Rated Current: 100 A
- Switch Class: PC Class
- Utilization Category: AC-33A
- Applicable Standard: IEC 60947-6-1
- Primary Application: Utility-to-generator / dual-source transfer
Installation note:Pole configuration, control voltage and wiring requirements should be confirmed from the supplied unit nameplate and installation documentation before connection.
