SKT1-160A
160 AMP ATS

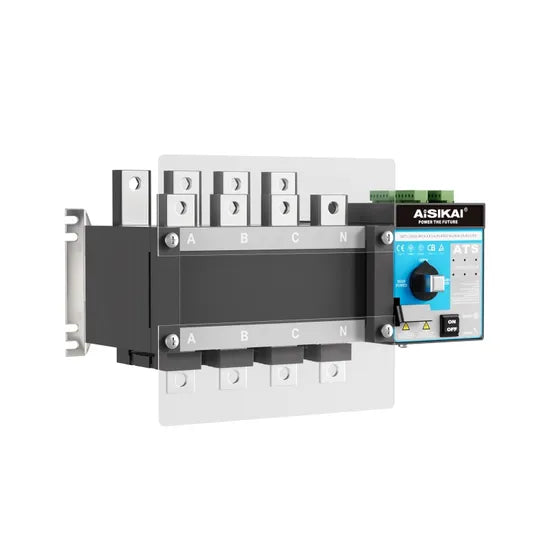

The SKT1-160A is a motorised automatic transfer switch for transferring a connected load between two low-voltage power sources, such as utility power and a standby generator. The documented 160A/4P variant uses a three-position ON-OFF-ON arrangement and supports both manual and automatic operation.
Key Features
-
160A rated currentfor larger backup-power and distribution applications.
-
4-pole configurationon the documented SKT1-160A/4P model.
-
ON-OFF-ON transfer positionsprovide an isolated centre-off position between sources.
-
Manual and automatic operationsupports normal automatic transfer plus service or emergency control.
-
PC-class SKT1 platformis designed for reliable source switching in low-voltage distribution systems.
-
Suitable for generator integrationin commercial, industrial and facility backup-power systems.
Specifications
- Model: SKT1-160A
- Rated Current: 160 A
- Documented Variant: 4P
- Frequency: 50 Hz
- Switch Positions: ON-OFF-ON / I-0-II
- Protection Rating: IP20
- Dimensions: 290 × 163 × 188 mm
- Approximate Weight: 5.5 kg
- Switch Class: PC Class (SKT1 family)
Installation note:Confirm the actual unit nameplate, control voltage and site wiring requirements before installation, as SKT1 switches are available in multiple configurations.
